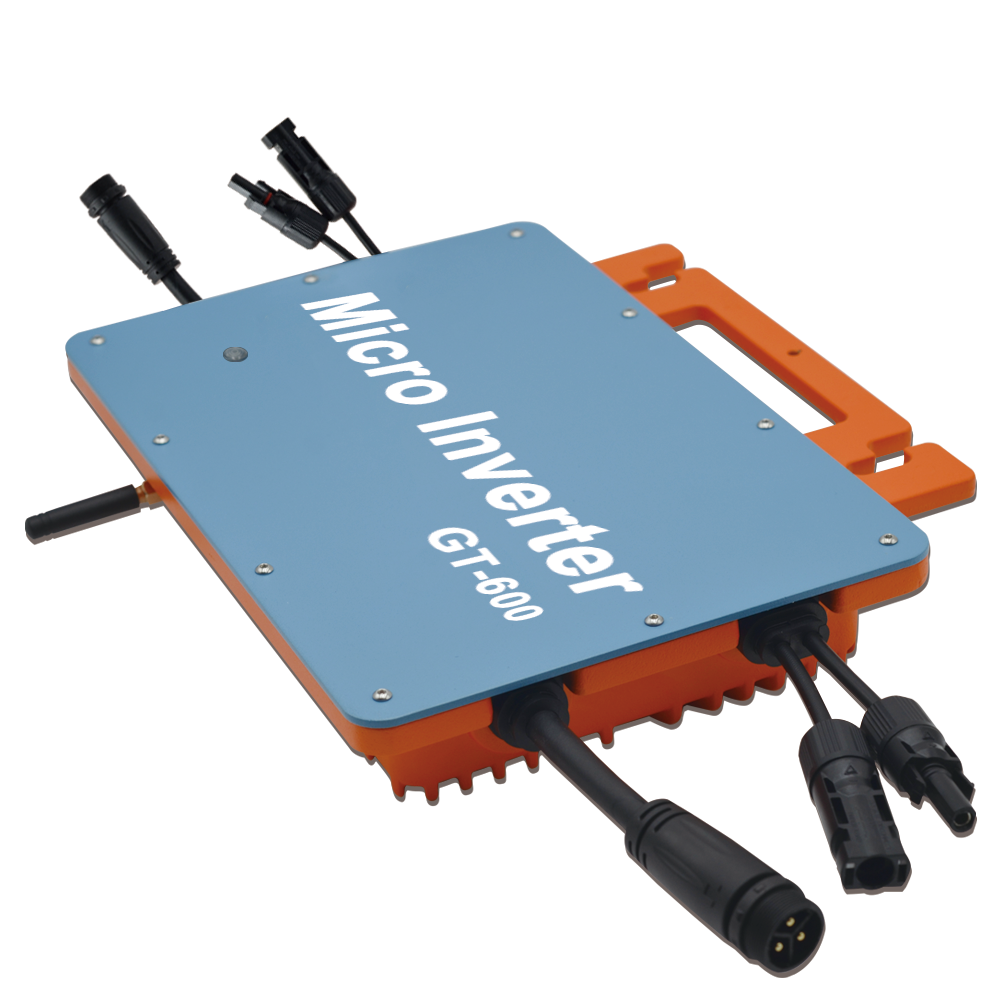

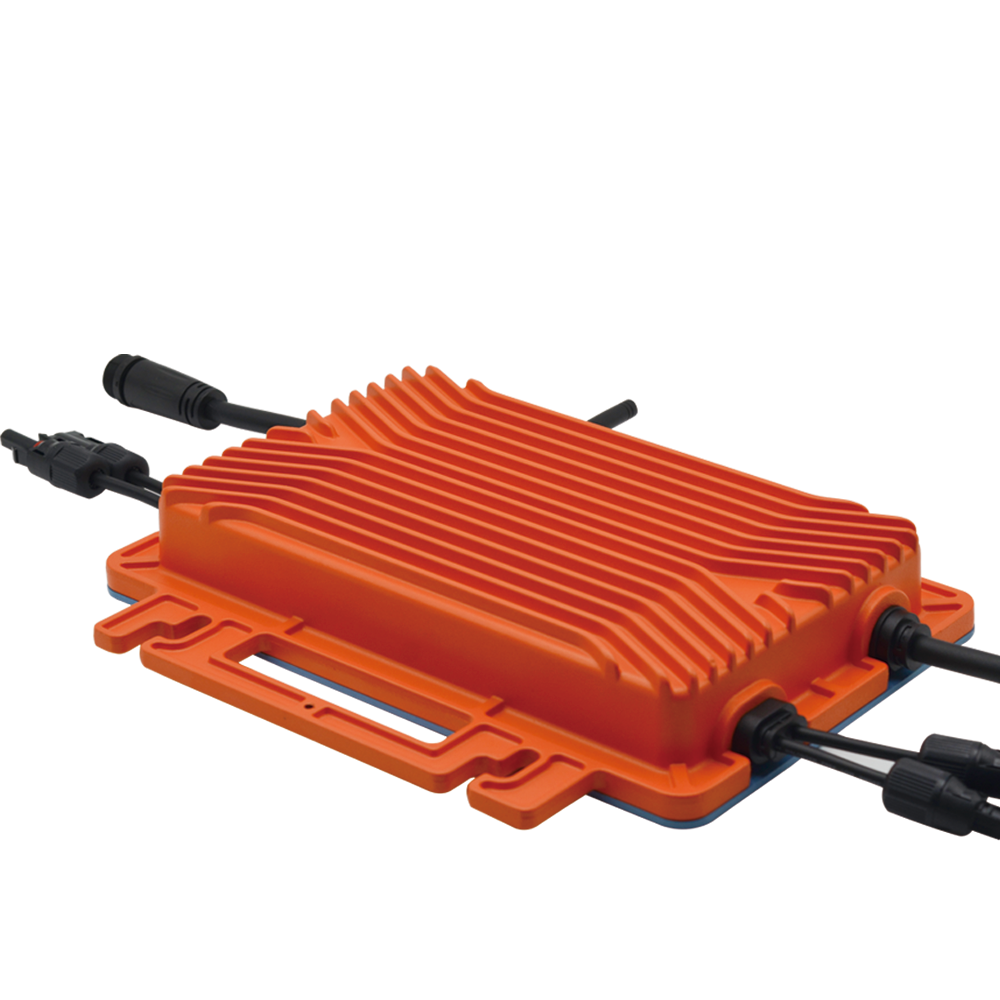

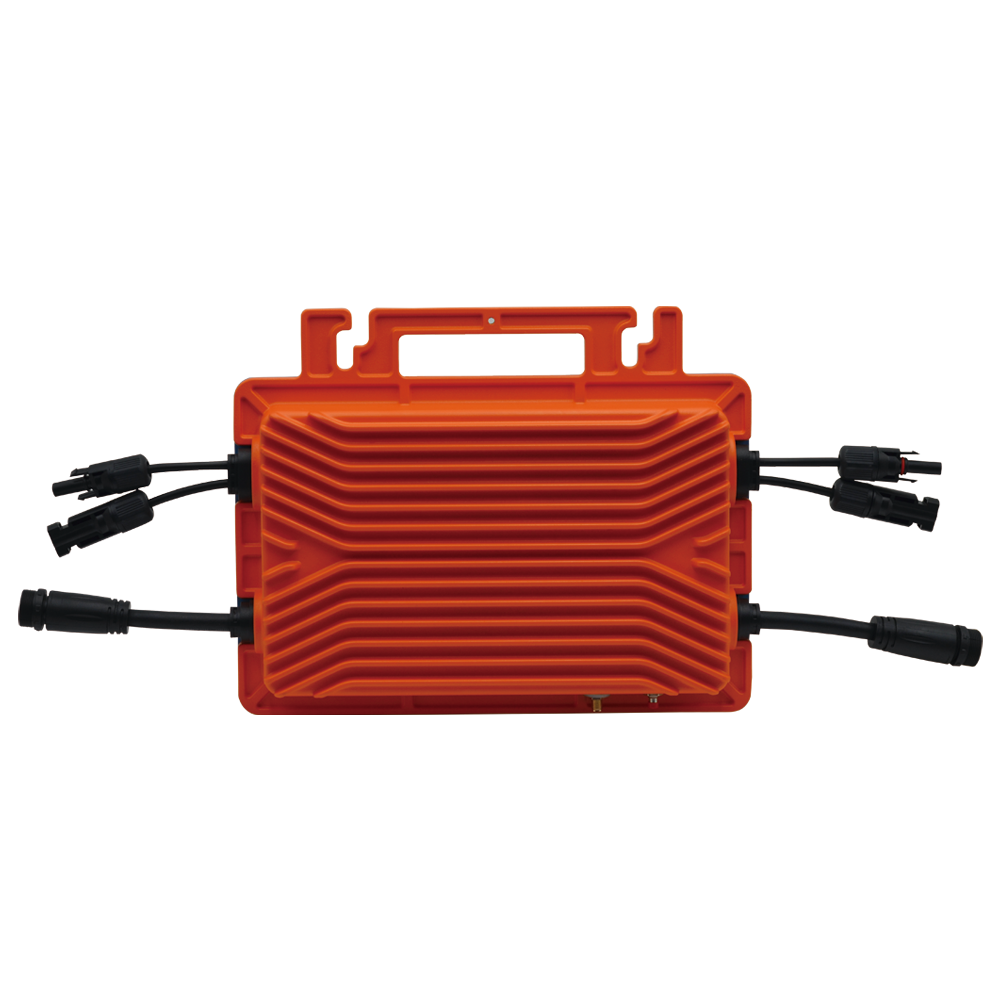

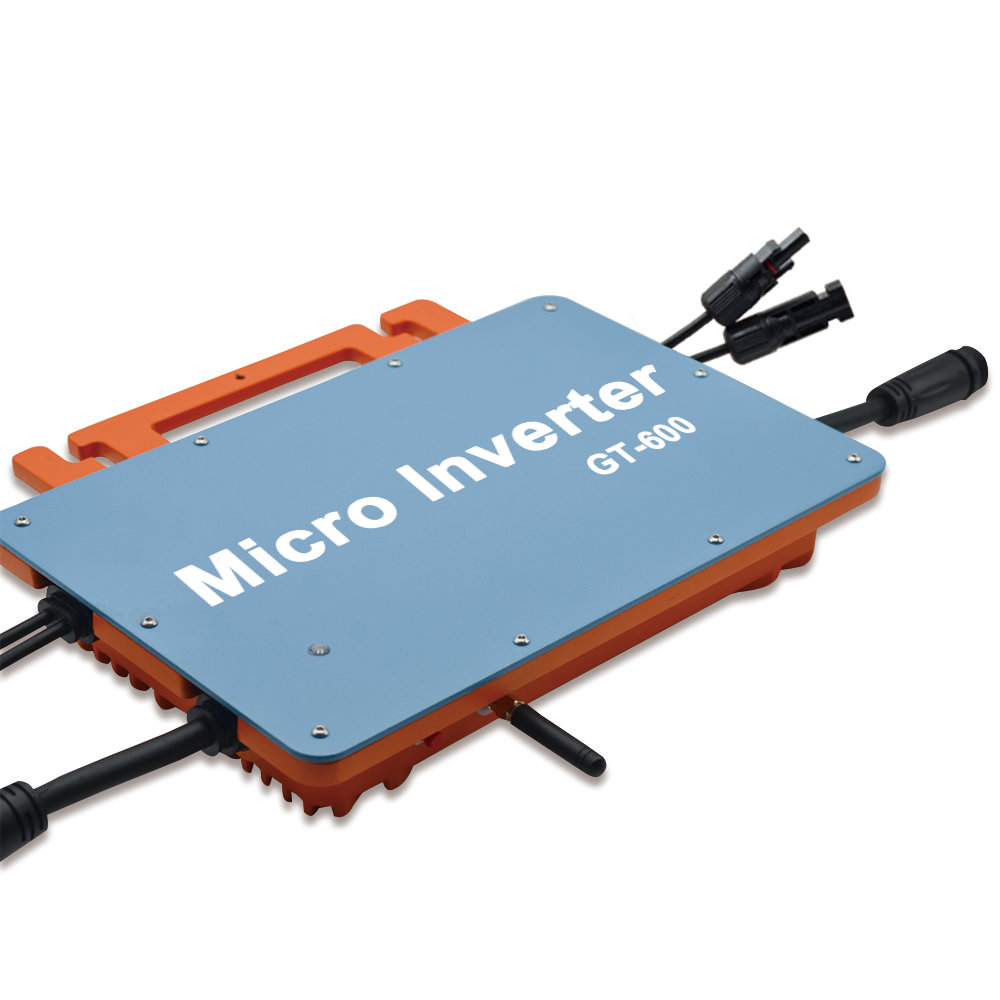

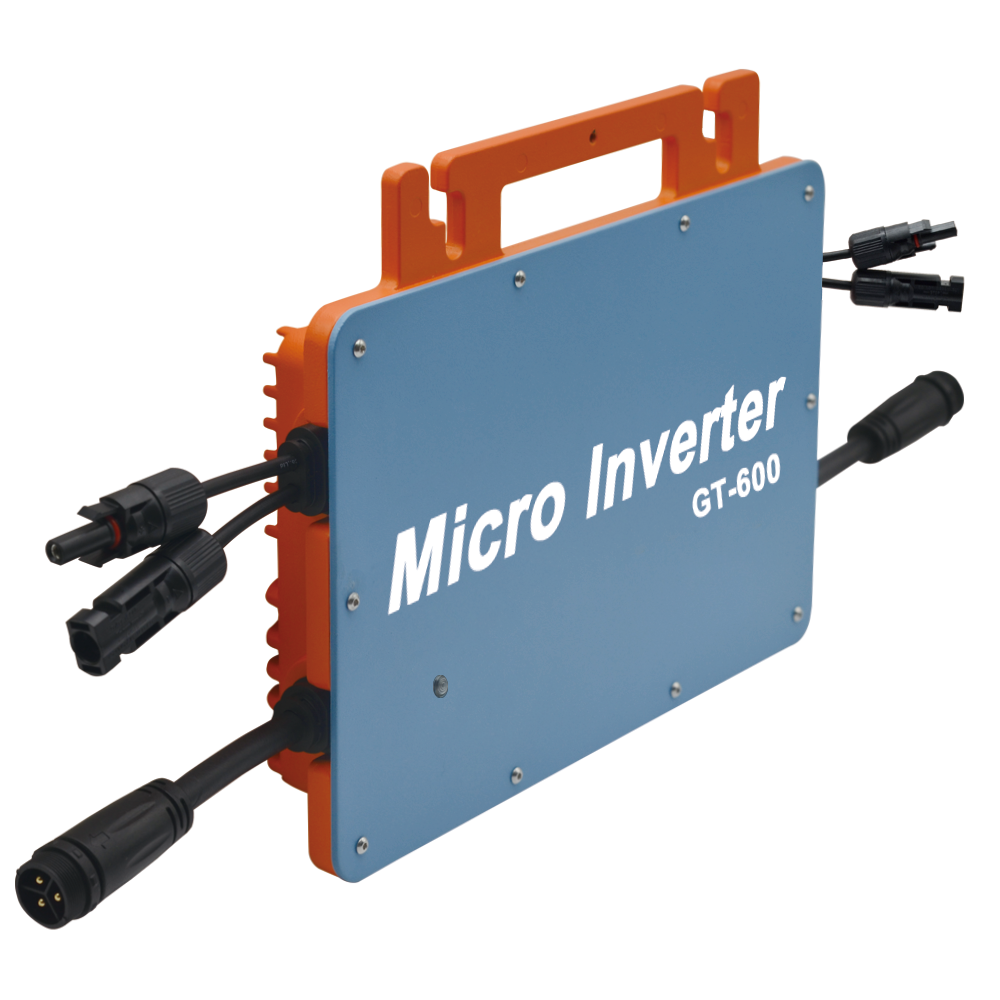

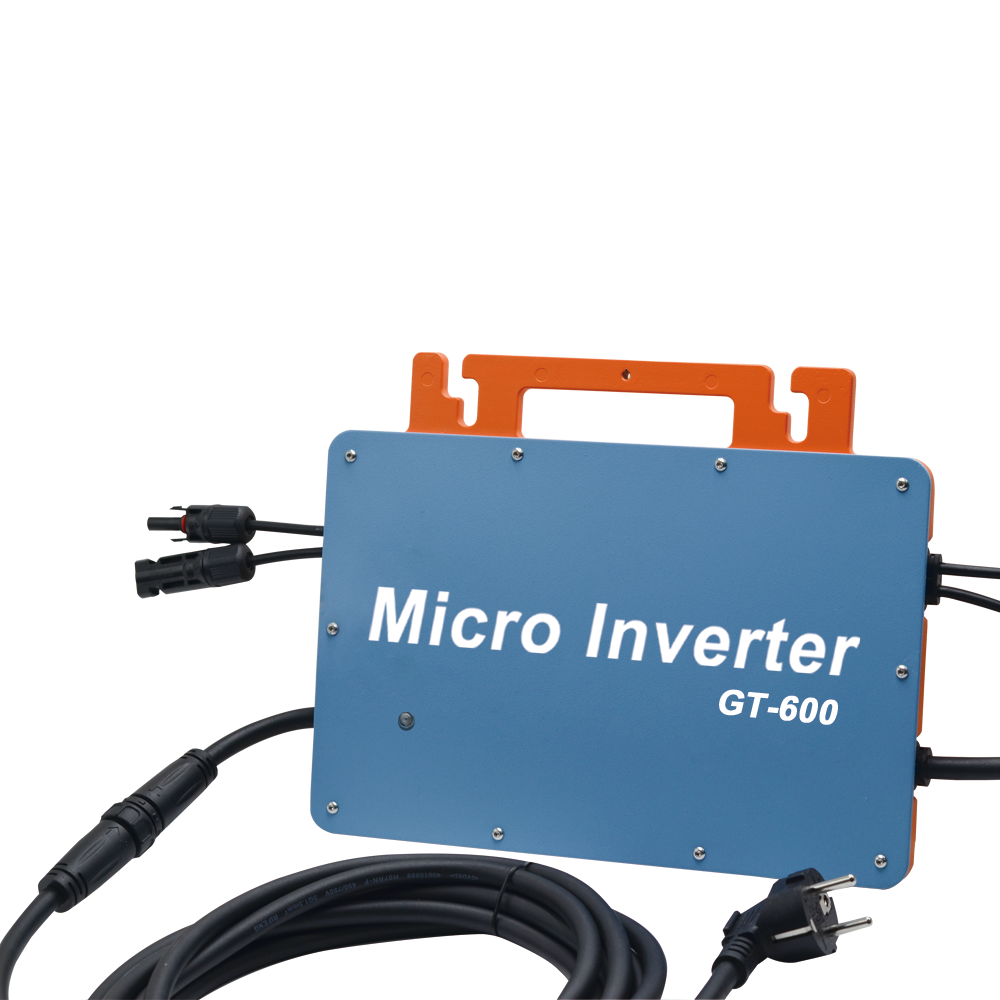

Micro inverter-600W

• The inverter ONLY works when it is connected to the grid. If the unit is unplugged, there is no feed-in.There is no voltage at the output and the indicator lights up red.
• The maximum voltage and wattage of all connected PV panels must NOT exceed the max voltage and wattage of the inverter, otherwise the unit will be damaged. Please refer to the technical data.
• Before maintenance work, the PV panels and all connections must be disconnected from unit.
• The unit may only be opened by qualified personnel.
• The current generated by the PV modules cannot be switched off. To do this, disconnect the panels from the inverter. Otherwise there is a danger of electric shock.
• Do NOT remove the lid. Servicing must be performed by qualified service personnel.
• Protect the inverter from direct sunlight and rain, e.g. by mounting it behind a PV panel.
• Do NOT cover the unit as it may overheat.

• NOTE: Unused connections must always be closed, otherwise water may enter and a short circuit may occur.

Input Data (DC, PV)

Number of Input MC4 Connector	2 sets
MPPT Voltage Range	22V-48V
Operation Voltage Range	20V-50V
Maximum Input Voltage	50V
Startup Voltage	22V
Maximum Input Power	600W 700W 800W
Maximum input Current	12A2 14A2 16A*2
Output Data(AC)
Single-Phase Grid Type	120V&230V
Rated Output Power	600W 700W 800W
Maximum Output Power	600W 700W 800W
Nominal Output Current	@120VAC:5A/@230VAC:2.6A @120VAC:5.8A/@230VAC:3A @120VAC:6.6A/@230VAC:3.4A
Nominal Output Voltage	120VAC /230VAC
Default Output Voltage Range	@120VAC:80V-160V /@230VAC:180V-270V
Nominal Output Frequency	50Hz / 60Hz
Default Output Frequency Range	@50Hz:48Hz-51Hz/@60Hz:58Hz-61Hz
Power Factor	>0.99%
Total Harmonic Distortion	THD <5%
Maximum Units per Branch	@120VAC:3units /@230VAC: 6units
Efficiency
Peak Efficiency	95%
Nominal MPPT Efficiency	99.5%
Night Power Consumption	<1w
Mechanical Data
Operating Ambient Temperature Range		-40℃ to +65℃
Storage Temperature Range		-40°C to +85C
Dimensions(WH D)		310mmx185mm x 45mm (not include connectors and cable)
Weight		2kg

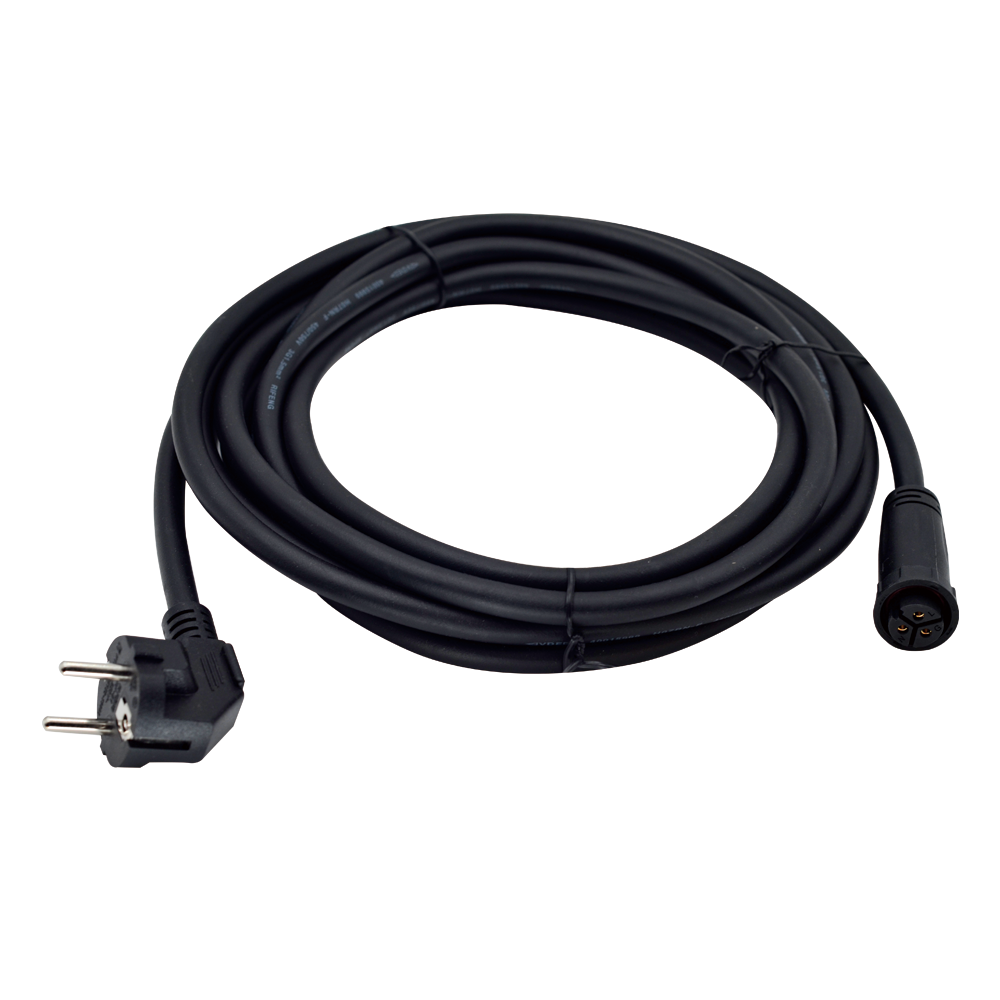

Max Current of AC Bus Cable		20A
Waterproof Grade		IP66
Cooling Mode		Natural Convection- No Fans
Other Features
Communication	WIFI(Cloud monitoring)
Transformer Design	High Frequency Transformers,Galvanically Isolated
Integrated Ground	Equipment ground is provided by the PE in the AC cable. No additional ground is required.
Protection Functions	lsolated Island Protection,Voltage Protection, Frequency Protection, Temperature Protection,Current Protection, etc.
Design Compliance	EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC55014-2:2021,EN IEC55014-2:2021,
